IPAF 3bHybridIndoor / Outdoor

Code: 004/0095

Working Height16.07m

17.0m Self Prop. Boom - Hybrid Batt/Dsl (2.0m Wide) 4wd hire

Name: 17.0m Self Prop. Boom - Hybrid Batt/Dsl (2.0m Wide) 4wd
SKU: 004/0095
Availability: InStock

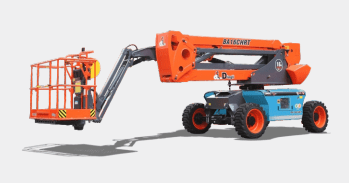

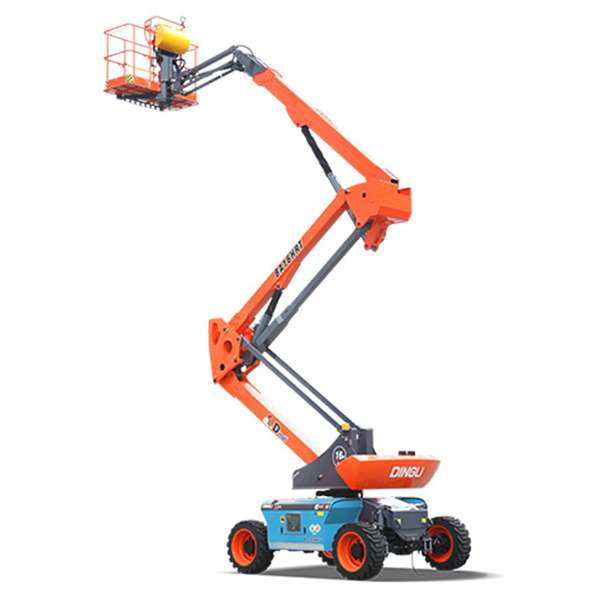

The 16m Articulated Boom - Dingli BA16CHRT (Hybrid); part of the D-Series of modular booms from Dingli.

Developed independently by Dingli, with a maximum working height of 16 meters and a maximum load of 250 kg. The whole D series adopts a lightweight design and is equipped with integrated axles, with the advantages of easy maintenance, high chassis, high energy efficiency, stable control and easy transportation.

Product Features:

Max. working height of 16.07m
Max. operating range (+0.6m) of 8.74m
Safe Working Load (S.W.L) of 250kg and a maximum of 2 occupants
Hybrid power
2-wheel steering, 4WD
Rough terrain tyres

View the product information for the 16m Articulated Boom - Dingli BA16CHRT (Hybrid)

Place your Hire Request

View Courses

Long Term Equipment Hire

Save up to 30%

Suitable for Non-Account Holders
Discounted Day Rates

Enquire Now

Trade Credit Account

Payment Terms

Bespoke Price Agreement
Live Hires, Historical Data & Reports
Monthly Invoicing
Online Ordering & Off-hire Management
Dedicated Account Manager

Open a Credit Account / Register

Hire rates Ex VAT & Delivery

1 day
£384.00

£384.00 / day

Base Rate

2 days
£384.00

£192.00 / day

Save: 50%

3 days
£384.00

£128.00 / day

Save: 66%

4 days
£480.00

£120.00 / day

Save: 68%

Week
£480.00

£68.57 / day

Save: 82%

Transport Code: 6

*Exact transport costs will be calculated with depot

Large Access Transport Guideline

Up to 10 miles:
£85 Each way

11-20 miles:
£150 Each way

21-30 miles:
£170 Each way

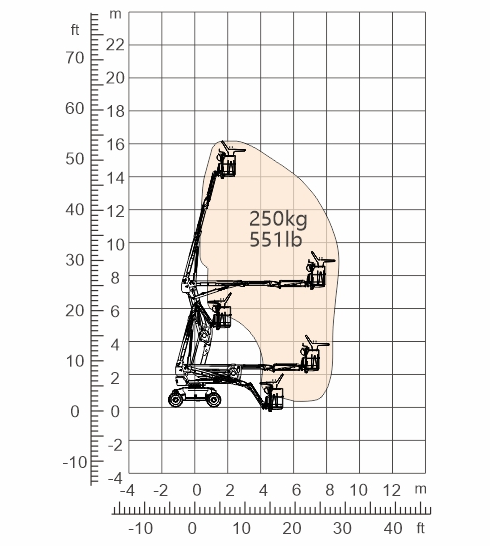

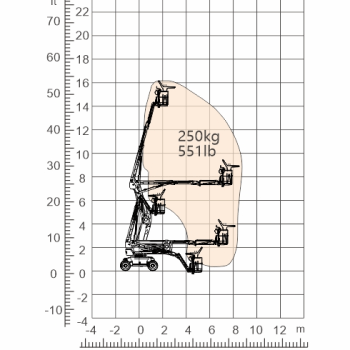

Full Technical Specifications

IPAF Category	IPAF 3b
Max. working height	16.07m
Travel speed (raised)	1.1km/h
Diesel tank	30L
Lifting motor	34VAC/13kW
Driving motor	34AC/9kW
Charger	48VDC/60A
Battery	48V/320Ah
Diesel engine	FIRMAN AN192F/7.6kW
Overall weight	7780kg
Jib movement	132 degrees
Platform rotation	180 degrees
Turret rotation	360 degrees continuous
Max. working slope	X-5 degrees/ Y- 5 degrees
Travel speed (Stowed)	6.0km/h
Max. platform height	14.07m
Gradeability	40%
Max. occupants	2
S.W.L	250kg
Max. down probing depth	1.06m
Max. up and over clearance	7.25m
Turning radius (Inside/Outside)	2.92m/4.49m
Wheelbase	2.30m
Ground clearance	0.31m
Turntable tailswing	0
Platform size (length x width)	1.83m x 0.79m
Max. platform range	8.14m
Max. Operating range (+0.6m)	8.74m
Hydraulic tank	145L
