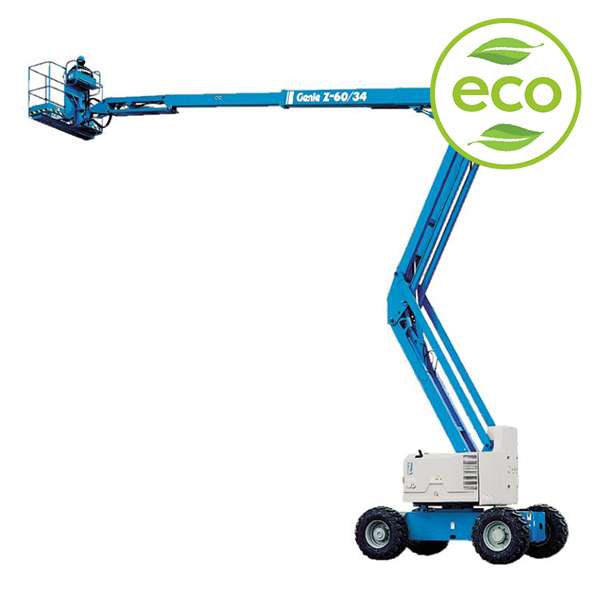

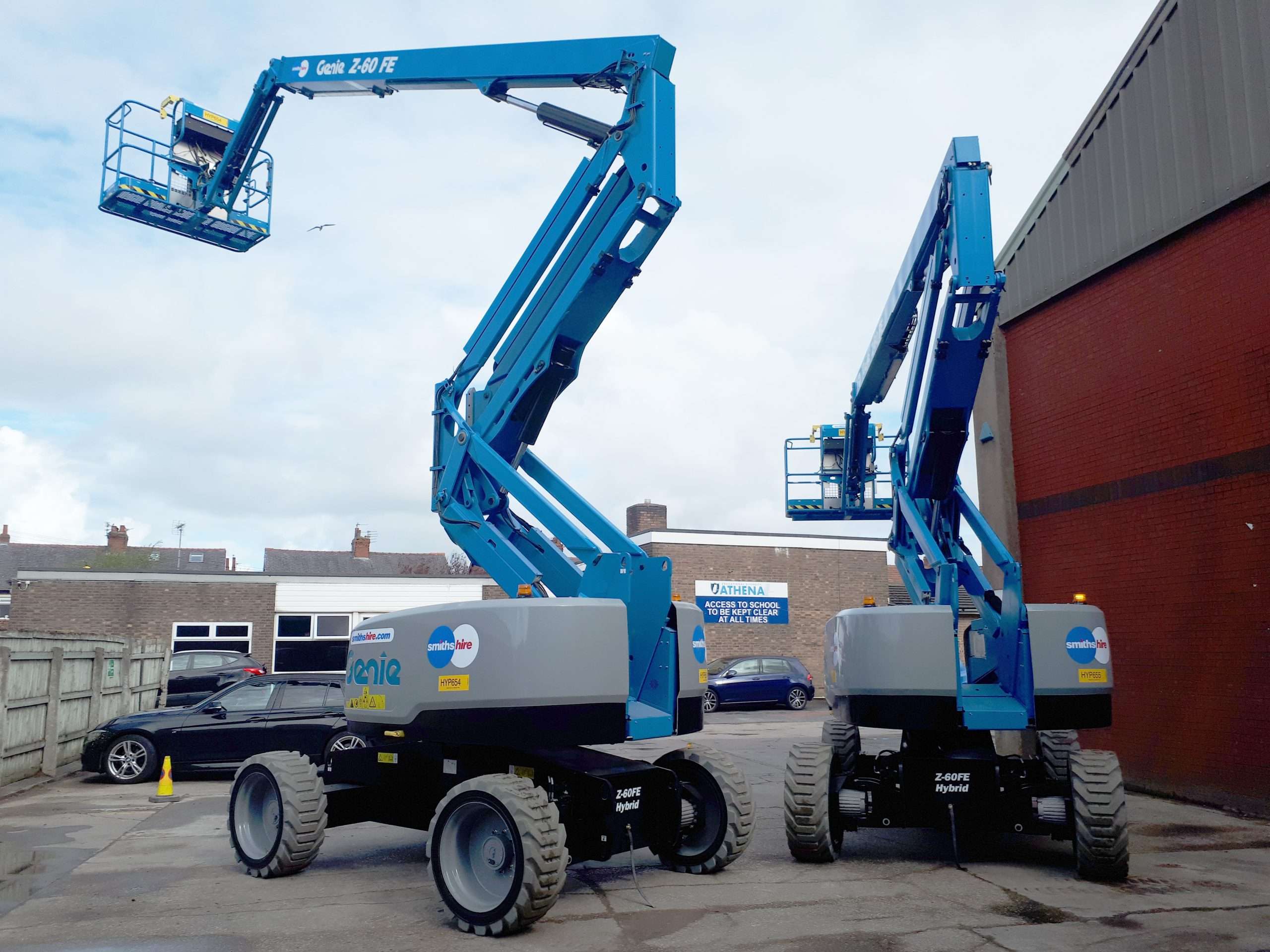

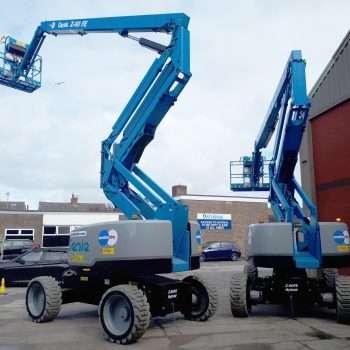

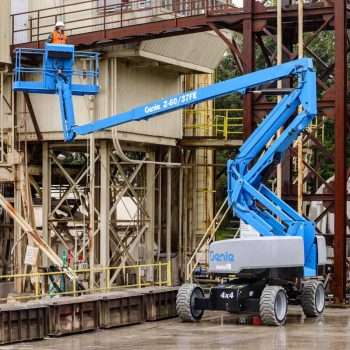

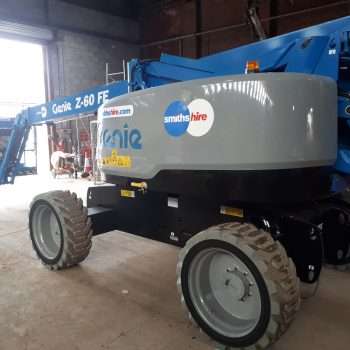

21m Articulated Boom Lift - Genie Z-60 FE (Hybrid) hire
The Genie Z-60 FE is two machines in one. The ‘full electric’ mode offers a full-day, emission-free run time on a single charge. The ‘hybrid’ mode offers one week of run time with a single tank of diesel. The ideal, environmentally-friendly solution for increased efficiency and a lower cost of operation.
Product Features:
- Full-time active oscillating axle helps maintain traction on rough terrain.
- 4 Wheel Drive and 45% gradeability for superior terrainability.
- High-efficiency AC drive system for enhanced driving performance and simplified maintenance.
- Two modes of operation: all-electric and Hybrid, with outstanding efficiency and versatility.
- Dual parallelogramme and fully proportional controls for precise boom positioning and smooth performance.
- 1.52m (5 ft) articulating jib with a 135° range of motion to accurately position workers.
- Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height.
Place your Hire Request
IPAF 3b Course Booking
Need certified operators? Browse our accredited IPAF 3b qualification course.
Commercial Hire Solutions
Business & long term hire rates.
Long Term Equipment Hire
- Suitable for Non-Account Holders
- Discounted Day Rates
Trade Credit Account
- Bespoke Price Agreement
- Live Hires, Historical Data & Reports
- Monthly Invoicing
- Online Ordering & Off-hire Management
- Dedicated Account Manager
Hire rates Ex VAT & Delivery
£473.60
£473.60
£473.60
£592.00
£592.00
Transport Code: 6
*Exact transport costs will be calculated with depot
Large Access Transport Guideline
Up to 10 miles:
£85 Each way
11-20 miles:
£150 Each way
21-30 miles:
£170 Each way
Full Technical Specifications
| IPAF Category | IPAF 3b |
|---|---|

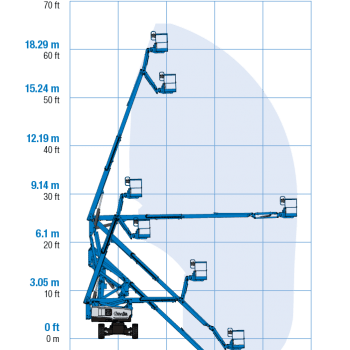

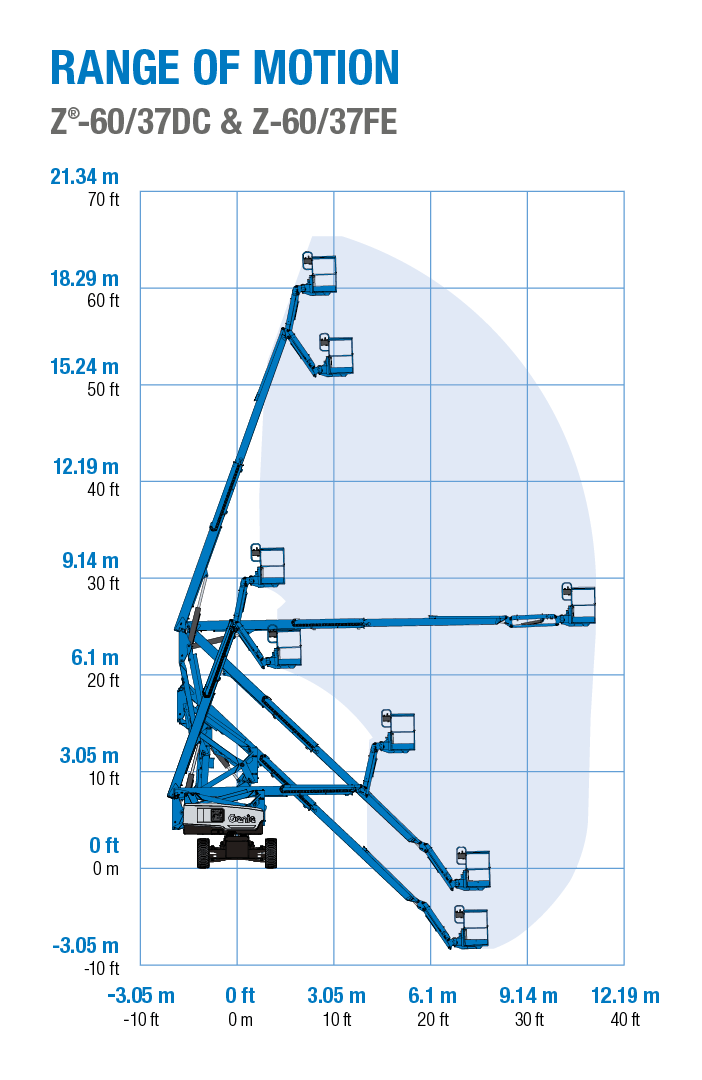

| Max Working Height | 20.16m |
| Max Horizontal Reach | 11.15m |
| Max Up and Over Clearance | 7.39m |
| Below Ground Reach | 2.46m |
| Platform Capacity | 227Kg |
| Gradeability - stowed | 45 degrees |
| Drive system | 34V 3-Phase AC |
| Battery Pack, FE | 48V DC (8 x 6V), 415Ah, AGM |
| AC generator, FE | Diesel |
| Fuel tank capacity | 17gal / 64L |
| Sound pressure level (ground workstation) | 77dBA |
| Sound pressure level (platform workstation) | 72dBA |
| Weight | 7756kg |
