Working Height40.3m
Weight19958kg
Dimensions3.81m width x 11.46m stowed length x 3.05m stowed height

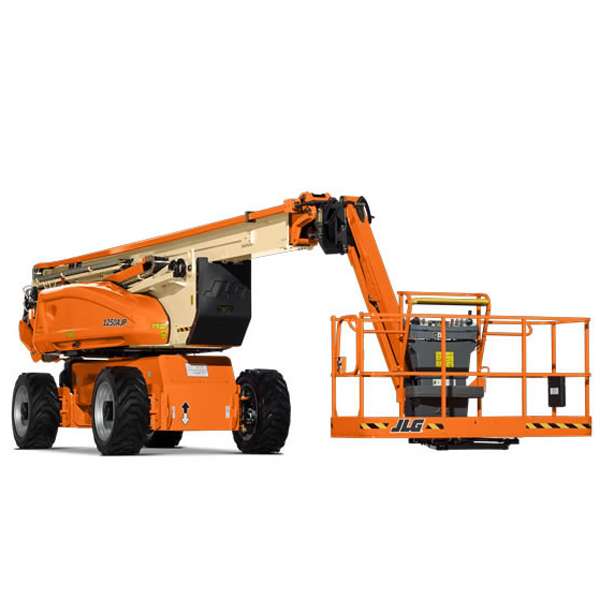

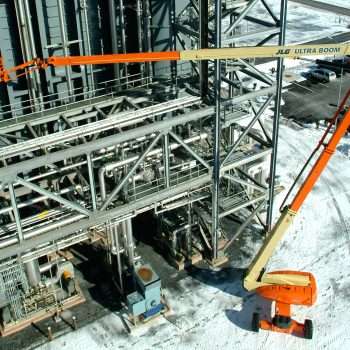

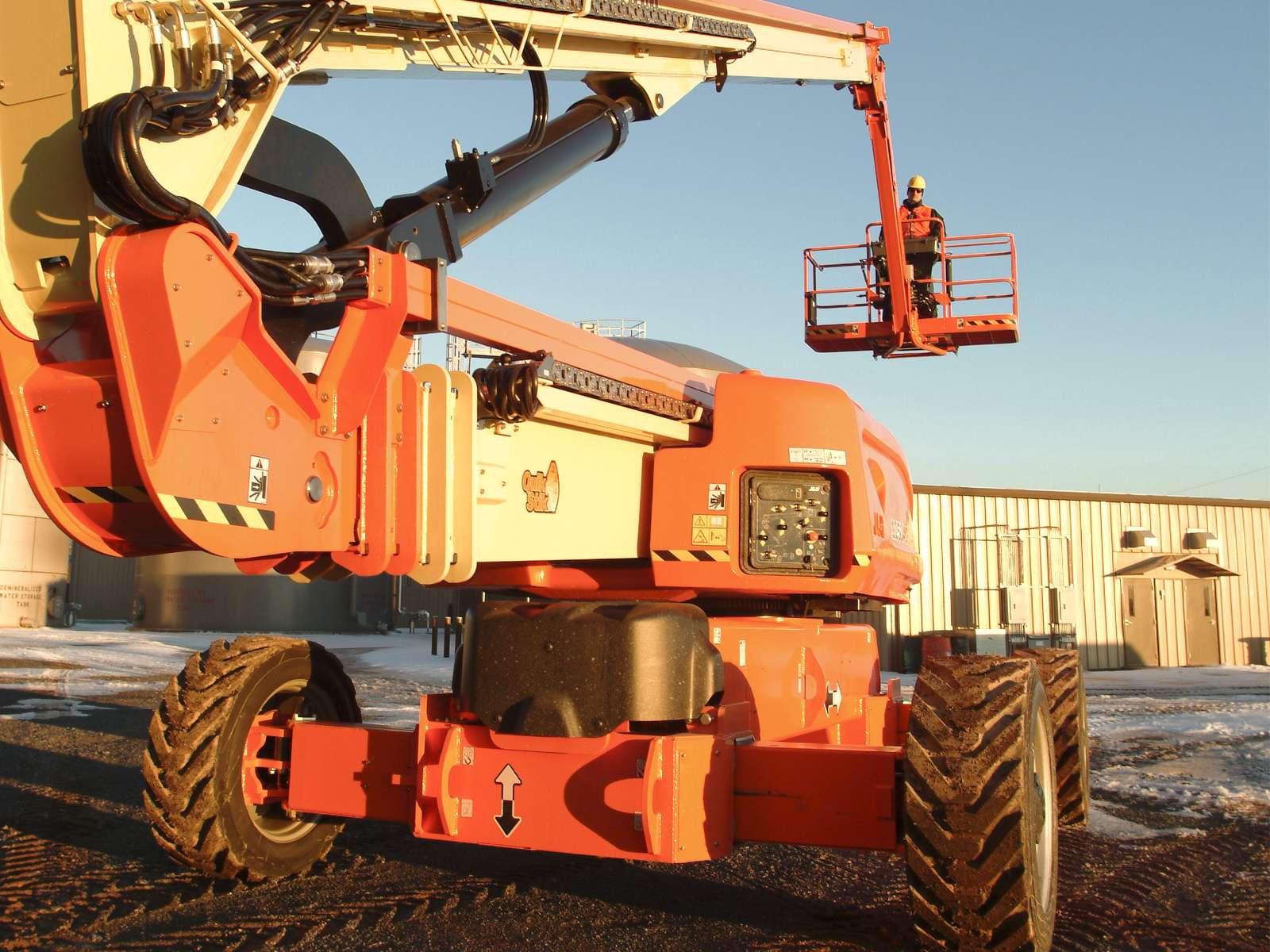

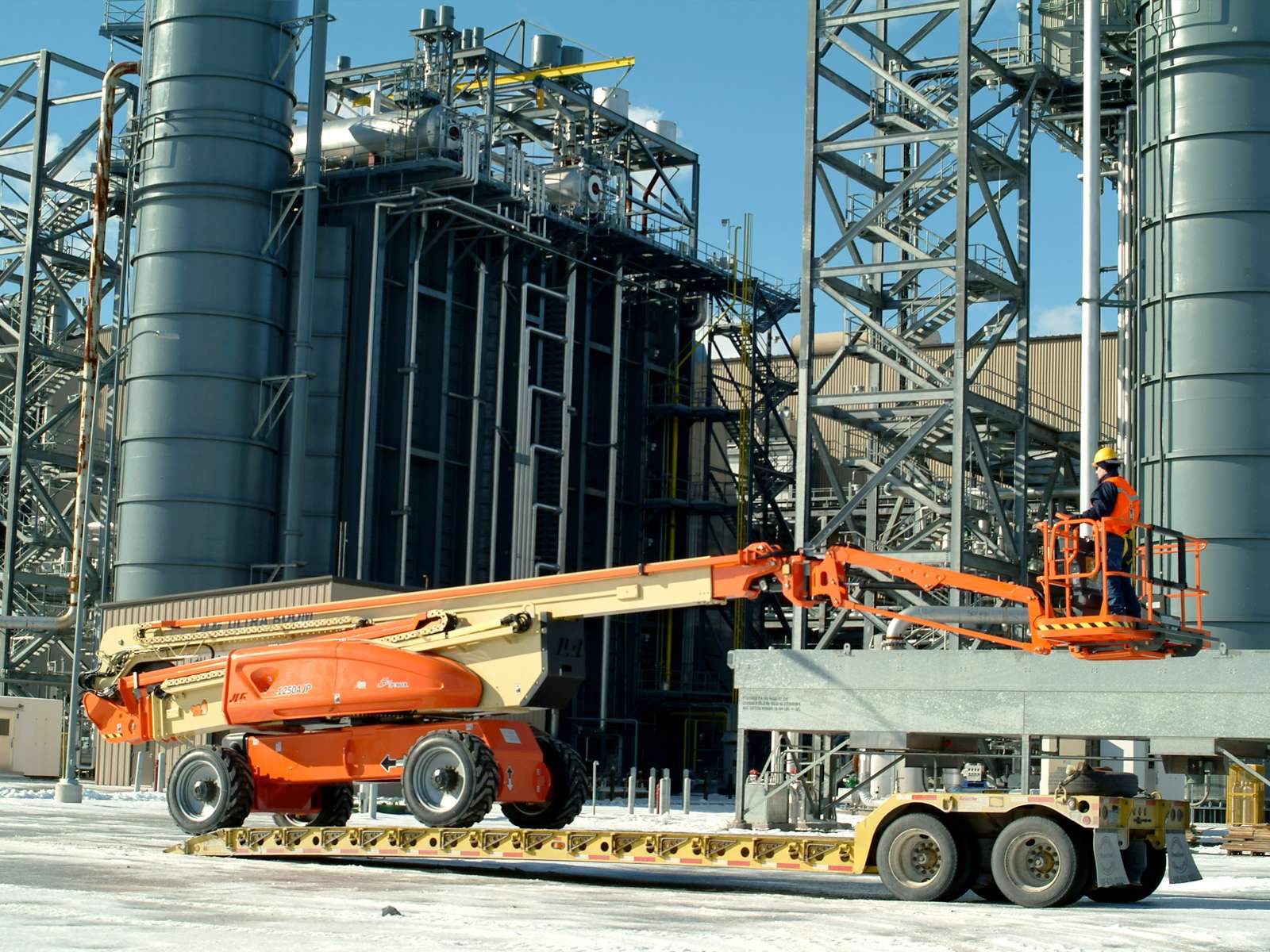

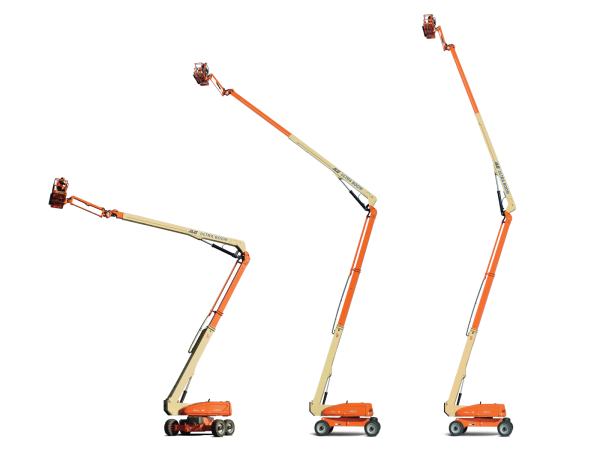

40m Articulated Diesel Boom Lift - JLG 1250AJP hire

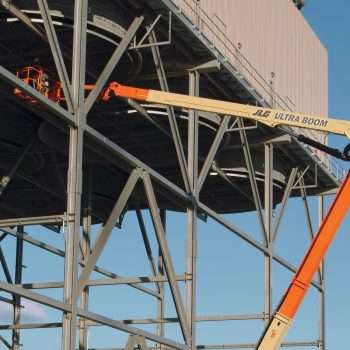

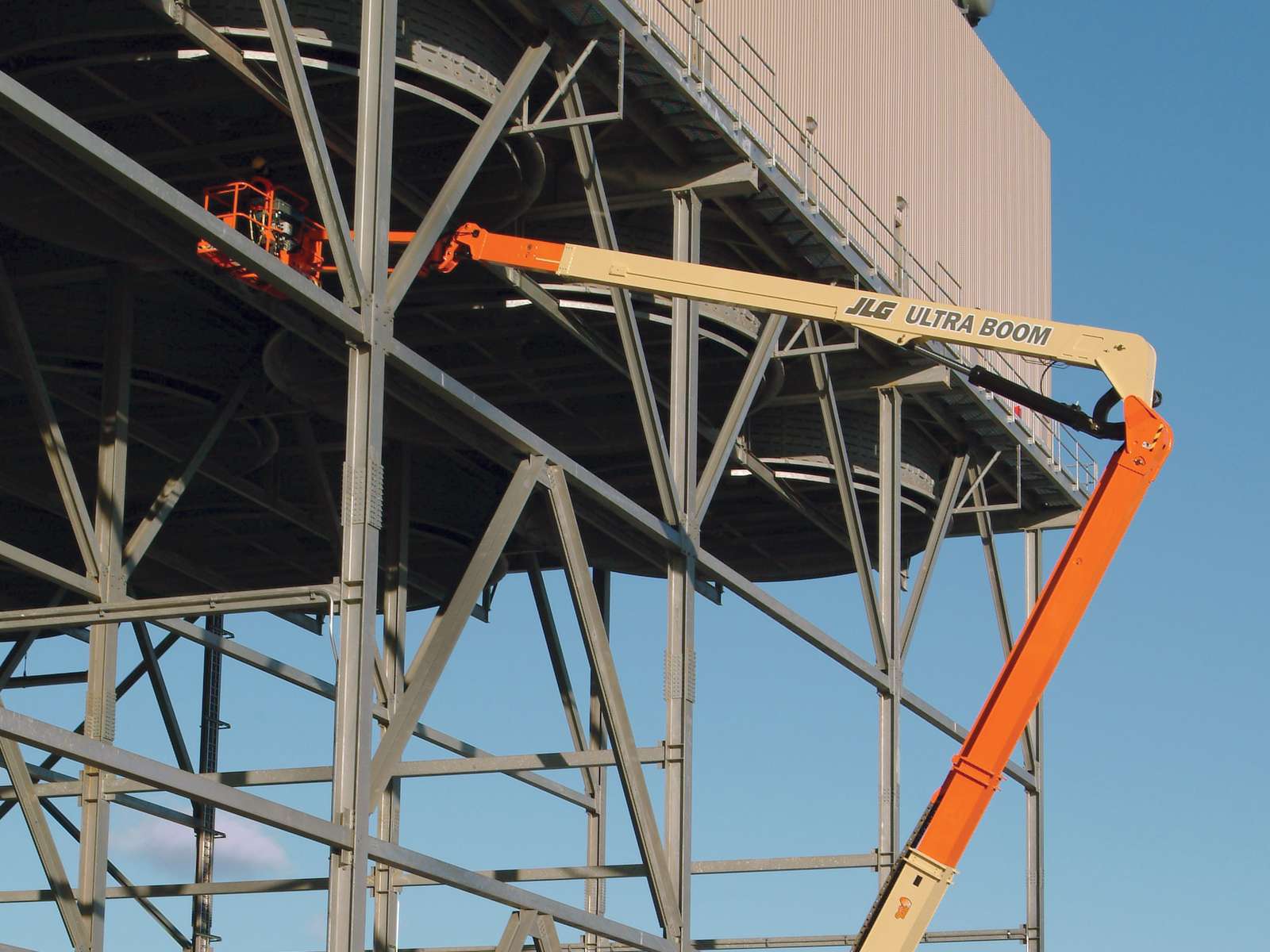

The JLG 1250AJP towers in at a massive 40.3m working height and is one of the largest articulated booms available in the UK. It has four wheel drive operation as well as oscillating axles, which provide greater mobility on site. With a Diesel fuelled Deutz engine, this machine is not only big in scale, but also in power! Reaches 40m in just over 115 seconds!
Product Features:

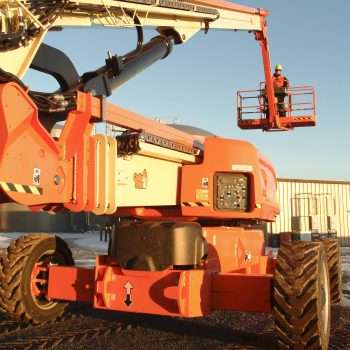

- Four wheel drive and steer.
- Oscillating axle for mobility use.
- Dual platform capacity for versatility and productivity, available up to 450kg.

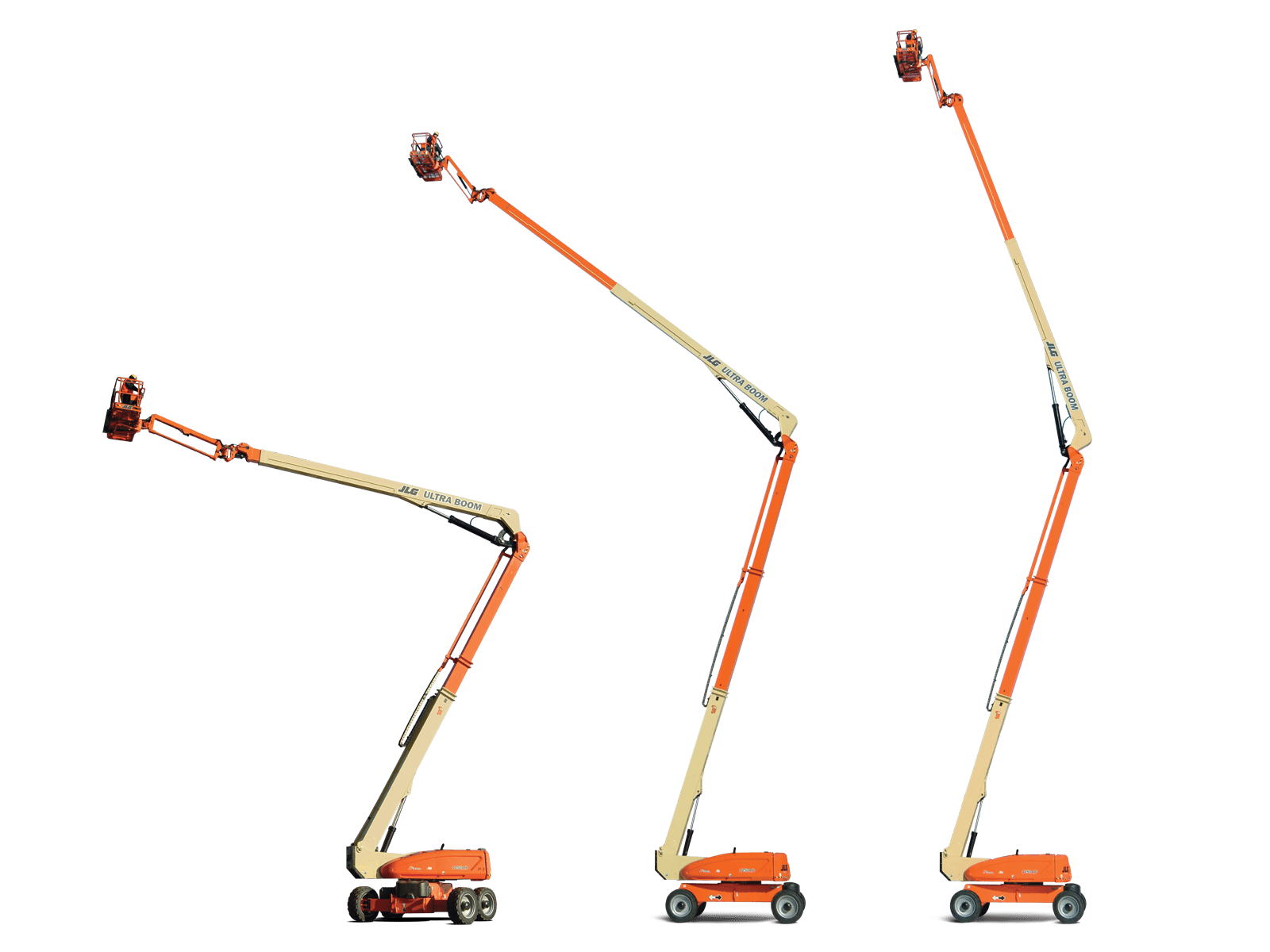

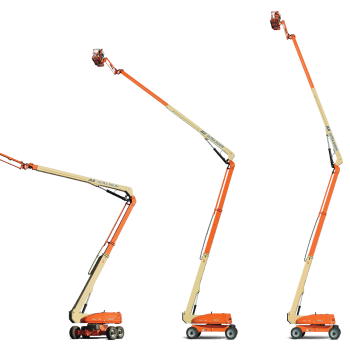

- JLG’s patented QuikStick® boom design significantly reduces lift/lower cycle times.

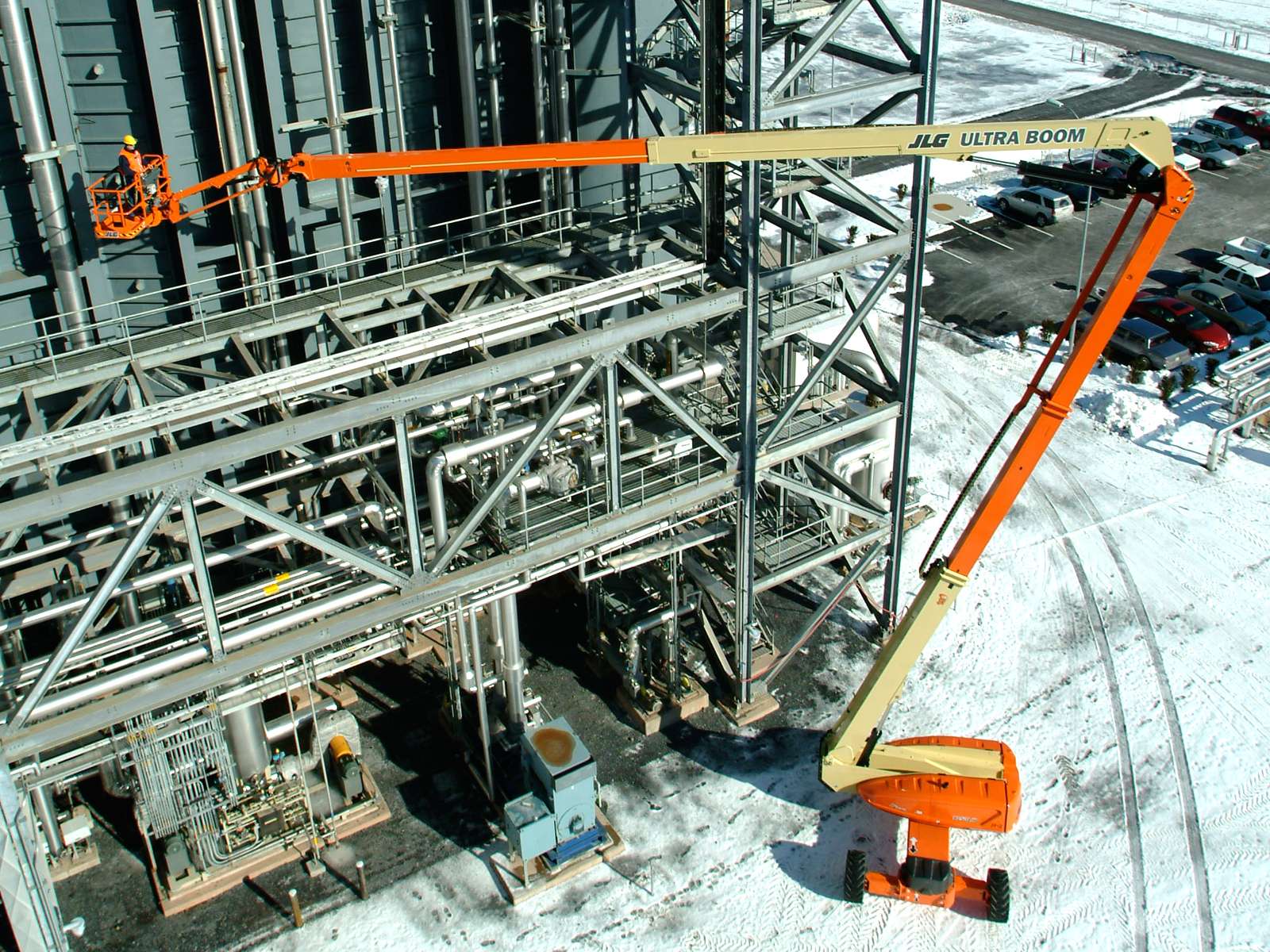

- Perfect for large scale outdoor working at height jobs.
Place your Hire Request
Training
IPAF 3b Course Booking
Need certified operators? Browse our accredited IPAF 3b qualification course.
Discount
Commercial Hire Solutions
Business & long term hire rates.
Long Term Equipment Hire
Save up to 30%
- Suitable for Non-Account Holders
- Discounted Day Rates
Trade Credit Account
Payment Terms
- Bespoke Price Agreement
- Live Hires, Historical Data & Reports
- Monthly Invoicing
- Online Ordering & Off-hire Management
- Dedicated Account Manager
Full Technical Specifications
| IPAF Category | IPAF 3b |
|---|---|
| Working Height | 40.3m |
| Platform Height | 38.3m |
| Outreach | 19.9m |
| Gradeability | 45% |
| SWL (restricted) | 450kg |
| SWL (unrestricted) | 230kg |
| Fuel Type | Diesel |
| Engine | Deutz BF4M 2011 |
| Wheelbase | 3810mm |
| Dimensions | 3.81m width x 11.46m stowed length x 3.05m stowed height |
| Weight | 19958kg |
