IPAF 3aElectricIndoor / Outdoor

Code: 004/0070

Working Height12.0m

Weight3000kg (lithium battery)

Dimensions1.15 x 2.48

12m Compact Electric Scissor Lift - Dingli JCPT1212AC hire

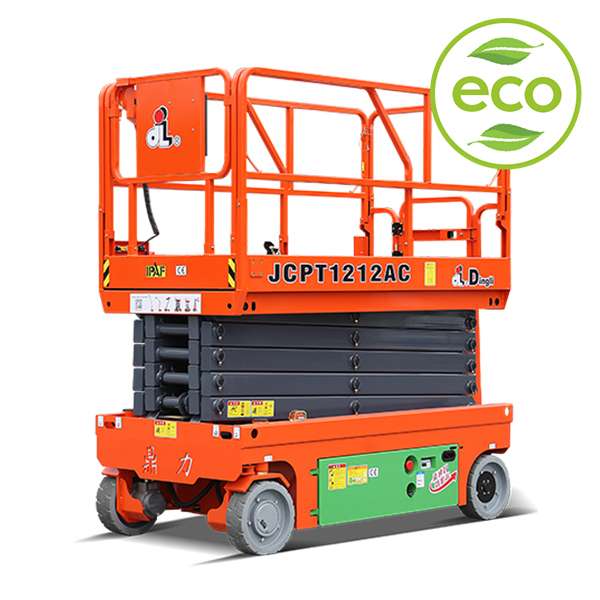

Name: 12m Compact Electric Scissor Lift - Dingli JCPT1212AC
SKU: 004/0070
Availability: InStock

The Dingli JCPT1212AC; a 12m Compact Electric Scissor Lift or aerial work platform as they are also sometimes known as, use batteries as the power source and is equipped with a fully enclosed AC system (drive, lift), instead of the traditional DC system (drive, lift), separate electric drive (AC ) And hydraulic drive (HA). The maximum working height is 12.0m, and the maximum load is 320kg. This compact scissor lift has the advantages of being maintenance-free, as well as more waterproof, more efficient and safer. Suitable for indoor flat ground and high altitude with high environmental requirements.

Dingli JCPT1212AC Product Features:

● Battery drive, equipped with fully sealed AC system (drive and lift).

● Automatic pothole protection system, more safe and reliable.

● Unidirectional extension platform, can quickly reach the operation point.

● Automatic display of fault code for easy maintenance.

*Recommended environment: Suitable for indoor and outdoor use

*Outdoor wind rating: 12.5m/s (28mph)

View the product information for the 12m Compact Electric Scissor Lift - Dingli JCPT1212AC

Place your Hire Request

View Courses

Long Term Equipment Hire

Save up to 30%

Suitable for Non-Account Holders
Discounted Day Rates

Enquire Now

Trade Credit Account

Payment Terms

Bespoke Price Agreement
Live Hires, Historical Data & Reports
Monthly Invoicing
Online Ordering & Off-hire Management
Dedicated Account Manager

Open a Credit Account / Register

Hire rates Ex VAT & Delivery

1 day
£182.40

£182.40 / day

Base Rate

2 days
£182.40

£91.20 / day

Save: 50%

3 days
£182.40

£60.80 / day

Save: 66%

4 days
£228.00

£57.00 / day

Save: 68%

Week
£228.00

£32.57 / day

Save: 82%

Transport Code: 6

*Exact transport costs will be calculated with depot

Large Access Transport Guideline

Up to 10 miles:
£85 Each way

11-20 miles:
£150 Each way

21-30 miles:
£170 Each way

Full Technical Specifications

IPAF Category	IPAF 3a
Max. working height	12.0m
Max. platform height	10.0m
Safe working load	320kg
Length	2.48m (without outriggers)
Width	1.15m
Platform size (Length x Width)	2.27m x 1.12m
Platform extension size	0.90m
Stowed height (rails up)	2.49m
Stowed height (rails down)	1.96m
Gradeability	25%
Weight	3000kg (lithium battery)
Hydraulic tank	20L
Battery	24V / 200Ah
Charger	24V / 30A
Driving motor	2x 15VAC/0.87kW
Lifting motor	15VAC / 3.5kW
Recommended environment	Suitable for both indoor and outdoor use
Outdoor wind rating	12.5m/s (28mph)
