IPAF 3a, IPAF PAVElectricIndoor

Code: 004/0048

Max Capacity227kg

Working Height5.0m

Weight495kg

Stowed Height1.82m

Dimensions0.77 x 1.26

5m Self-propelled Electric Scissor Lift - Snorkel S3010E hire

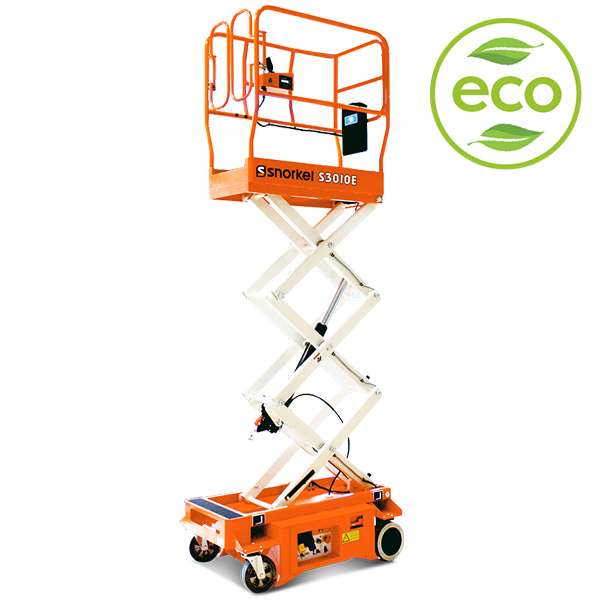

Name: 5m Self-propelled Electric Scissor Lift - Snorkel S3010E
SKU: 004/0048
Availability: InStock

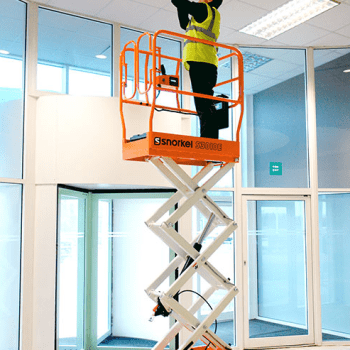

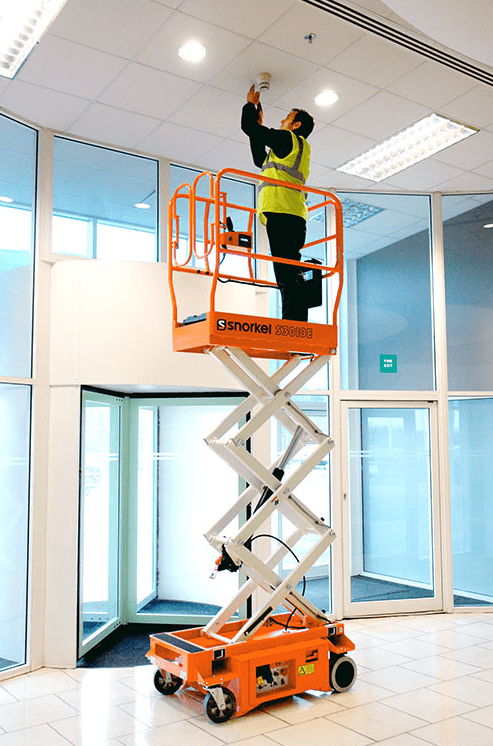

The Snorkel S3010E Electric Scissor Lift is ideal for low level interior maintenance and construction duties.

A versatile yet compact 5.0m self-propelled mini scissor lift.

Simple to operate, the S3010E is equipped with skid-steer and boasts a zero inside turning radius – perfect for working in confined spaces and narrow aisles.

The S3010E can lift 227kg to a working height of 5.0m.

Snorkel S3010E Product Features:

Highly manoeuvrable skid steer
Zero inside turning radius
Saloon-door style entry gates
1 person + equipment capacity indoor
Non-marking tyres
Proportional point & go joystick controls
Integrated battery charger
Battery condition indicator
Crane points & through-the-chassis fork pockets
Selectable motion alarm
Tilt & descent alarm
Hour meter
Horn

*Recommended environment: Suitable for indoor use only

*Outdoor wind rating: 0m/s - do not use outdoor

Click here for product information for the Snorkel S3010E Electric Scissor Lift

Machine Safety Guidance

Boots

Steel toe-capped foot protection to prevent accidental crushing and breaking.

Hard Hat / Safety Helmet

Worn on construction sites, helmets protect against falling objects and debris.

Safety Harness

Fall arresting safety harnesses prevent injury and/or death from falling from height.

Place your Hire Request

View Courses

Long Term Equipment Hire

Save up to 30%

Suitable for Non-Account Holders
Discounted Day Rates

Enquire Now

Trade Credit Account

Payment Terms

Bespoke Price Agreement
Live Hires, Historical Data & Reports
Monthly Invoicing
Online Ordering & Off-hire Management
Dedicated Account Manager

Open a Credit Account / Register

Hire rates Ex VAT & Delivery

1 day
£81.59

£81.60 / day

Base Rate

2 days
£81.59

£40.80 / day

Save: 50%

3 days
£81.59

£27.20 / day

Save: 66%

4 days
£102.00

£25.50 / day

Save: 68%

Week
£102.00

£14.57 / day

Save: 82%

Transport Code: 4

*Exact transport costs will be calculated with depot

Plant & Small Access Transport Guideline

Up to 10 miles:
£40 Each way

11-20 miles:
£60 Each way

21-30 miles:
£80 Each way

Full Technical Specifications

IPAF Category	IPAF 3a, IPAF PAV
Max. working height	5.0m
Gradeability	25%
Battery charger	100-240V 50/60Hz Auto, 30 amp
Power source	2 x 12V 105Ah
Drive system	DC direct drive
Controls	2-axis proportional controls
Parking brake	2 wheel automatic
Tyres	230mm diameter non-marking rubber
Outside turning radius	1.4m
Inside turning radius	0m
Max. operating slope	2 degrees
Raise/lower time	18/25 seconds
Max. platform height	3.0m
Max. drive speed (elevated)	0.64km/h
Max. drive speed (stowed)	3.5km/h
Max. wind speed	0m/s
Max. drive height	3.0m
Platform capacity (SWL)	227kg
Ground clearance	58mm
Stowed height	1.82m
Overall length	1.26m
Overall width	0.77m
Platform size	1.02m x 0.45m
Weight	495kg
Recommended environment	Suitable for indoor use only
Outdoor wind rating	0m/s – do not use outdoor
