18.0m Jackleg Diesel Scissor RT hire

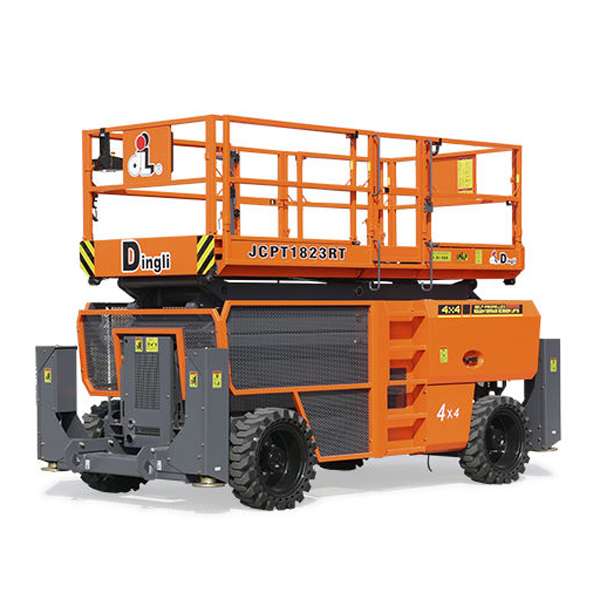

The JCPT1823RTB Rough Terrain Scissor Lift from Dingli. This is the ideal machine if you're looking to work at heights of up to 18m. It can be used for a range of large-scale indoor applications, as well as outdoors due to its rough terrain nature.
Product Features:
- Four wheel drive.
- Large working platform - higher operating efficiency.

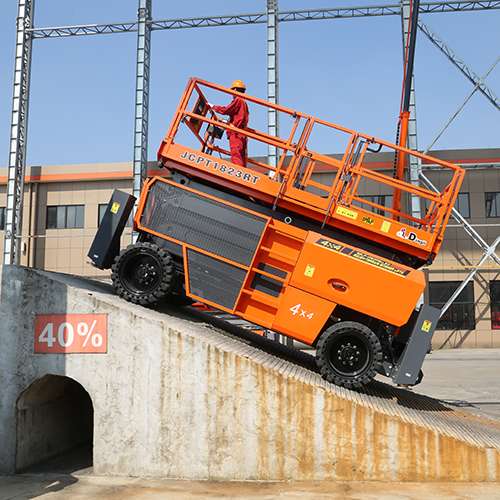

- Climbing ability - maximum up to 50% more mobile.
- Self-levelling hydraulic outriggers.
- Folding guardrails.

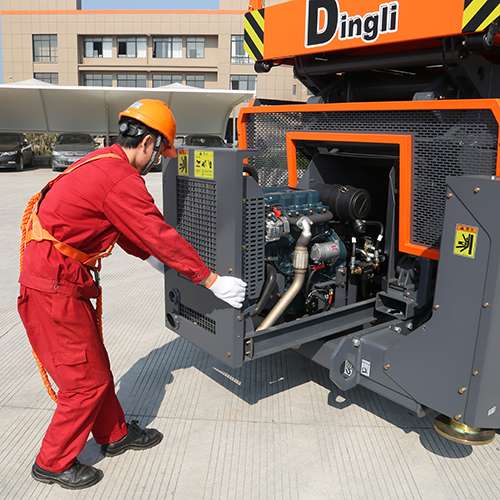

- Slide-out engine tray.
- Onboard diagnostic system.
- Emergency stop button.
- Tilt sensor with alarm.
*Recommended environment: Suitable for indoor and outdoor use
*Outdoor wind rating: 12.5m/s (28mph)
Click to view our full Powered Access range here
Place your Hire Request
IPAF 3a Course Booking
Need certified operators? Browse our accredited IPAF 3a qualification course.
Commercial Hire Solutions
Business & long term hire rates.
Long Term Equipment Hire
- Suitable for Non-Account Holders
- Discounted Day Rates
Trade Credit Account
- Bespoke Price Agreement
- Live Hires, Historical Data & Reports
- Monthly Invoicing
- Online Ordering & Off-hire Management
- Dedicated Account Manager
Hire rates Ex VAT & Delivery
£352.00
£352.00
£352.00
£440.00
£440.00
Transport Code: 6
*Exact transport costs will be calculated with depot
Large Access Transport Guideline
Up to 10 miles:
£85 Each way
11-20 miles:
£150 Each way
21-30 miles:
£170 Each way
Full Technical Specifications
| IPAF Category | IPAF 3a |
|---|---|
| Working Height | 18.00m |
| Safe working load | 680kg |
| Hydraulic tank | 130L |
| Diesel tank | 100L |
| Diesel engine | 36.8kW/2700rpm |
| Travel speed (raised) | 1.1km/h |
| Travel speed (stowed) | 6.0km/h |
| Gradeability | 40% |
| Max. occupants | 4 |
| Safe working load on extension | 227kg |
| Turning radius (inside/outside) | 2.35m/5.20m |
| Platform Height | 16.00m |
| Ground clearance | 0.30m |
| Platform extension size | 1.43m / 1.16m |
| Platform Size | 3.98m × 1.83m |
| Overall height (rails down) | 2.49m |
| Overall height (rails up) | 3.19m |
| Overall Width | 2.27m |
| Overall Length | 4.88m |
| Weight | 8590kg |
| Recommended environment | Suitable for both indoor and outdoor use |
| Outdoor wind rating | 12.5m/s (28mph) |
