IPAF 3aElectricIndoor / Outdoor

Code: 004/0050

Working Height7.80m

Weight1650kg

Dimensions0.76 x 1.86

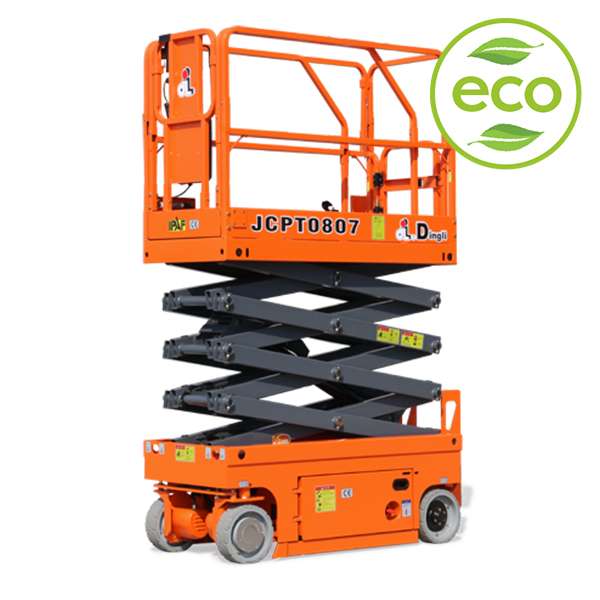

7.8m Electric Scissor Lift - Dingli JCPT0807PA (Oil-free) hire

Name: 7.8m Electric Scissor Lift - Dingli JCPT0807PA (Oil-free)
SKU: 004/0050
Availability: InStock

New to fleet: the Dingli JCPT0807PA (Oil-free); 7.8m Narrow Width Electric Scissor Lift, features the World's first oil-free and all-electric scissor series using electric actuators instead of traditional hydraulic cylinders.

Low energy consumption, the total transmission efficiency of the direct motor drive systems reaches 95%, more than 30% energy saving compared with the traditional hydraulic system.

Offering safer, higher levels of water and dust resistance, with built-in position sensors and real-time data monitoring of the full stroke. The synergistic drives enable temperature, load, and variable torque control, offering high active safety.

With easy maintenance, no hydraulic system, means you avoid system problems such as valve core stuck, oil leakage, oil change, high and low temperature efficiency reduction. The JCPT0807PA is equipped with maintenance-free permanent magnet synchronous motor and AGM battery, which greatly reduces maintenance costs.

A comfortable, full stroke proportional control eliminates the jitter and abrupt feeling caused by self-gravity lowering of the hydraulic system, providing a better experience.

Dingli JCPT0807PA (Oil-free) Product Features:

Proportional Joystick Controls
Self-Locking Gates
One-Way Platform Extension Deck
Drivable At Full Height
Non-Marking Tyres
Two-Wheel Drive
Two-Wheel Steering
Automatic Braking System
Emergency Descent System
Onboard Fault Diagnostic System
Tilt Alarm
Motion Alarm
Horn
Hour Meter
Safety Arm For Troubleshooting
Standard Transport Forklift Holes
Charging Protection System
Flashing LED Beacon
Foldable Guard Rails
Automatic Pothole Protection
Drive Enable
Charging Indicator
Manual Brake Release
Lanyard Attachment Point
Tie-Down And Lifting Points
Platform Load Sense System
Emergency Stop Button

*Recommended environment: Suitable for indoor and outdoor use

*Outdoor wind rating: 12.5m/s (28mph)

View the product information for the 7.8m Electric Scissor Lift - Dingli JCPT0807PA (Oil-free)

Machine Safety Guidance

Boots

Steel toe-capped foot protection to prevent accidental crushing and breaking.

Safety Harness

Fall arresting safety harnesses prevent injury and/or death from falling from height.

Hard Hat / Safety Helmet

Worn on construction sites, helmets protect against falling objects and debris.

Place your Hire Request

View Courses

Long Term Equipment Hire

Save up to 30%

Suitable for Non-Account Holders
Discounted Day Rates

Enquire Now

Trade Credit Account

Payment Terms

Bespoke Price Agreement
Live Hires, Historical Data & Reports
Monthly Invoicing
Online Ordering & Off-hire Management
Dedicated Account Manager

Open a Credit Account / Register

Hire rates Ex VAT & Delivery

1 day
£131.19

£131.20 / day

Base Rate

2 days
£131.19

£65.60 / day

Save: 50%

3 days
£131.19

£43.73 / day

Save: 66%

4 days
£164.00

£41.00 / day

Save: 68%

Week
£164.00

£23.43 / day

Save: 82%

Transport Code: 5

*Exact transport costs will be calculated with depot

Standard Access Transport Guideline

Up to 10 miles:
£70 Each way

11-20 miles:
£120 Each way

21-30 miles:
£140 Each way

Full Technical Specifications

IPAF Category	IPAF 3a
Max. Working Height	7.80m
Max. Platform Height	5.80m
Safe Working Load	230kg
Length	1.86m (without outriggers)
Width	0.76m
Platform Size (Length x Width)	1.67m x 0.74m
Platform extension size	0.90m
Stowed Height (rails up)	2.15m
Stowed Height (rails down)	1.83m
Gradeability	25%
Battery	24V / 185Ah
Charger	24V / 30A
Driving motor	2x 24VDC / 0.5kW
Lifting motor	24VDC / 1.4kW
Weight	1650kg
Recommended environment	Suitable for both indoor and outdoor use
Outdoor wind rating	12.5m/s (28mph)
