Code: 010/0400
Dimensions1270 x 2444

6.5m Fork Lift Truck SWL 2.5t hire

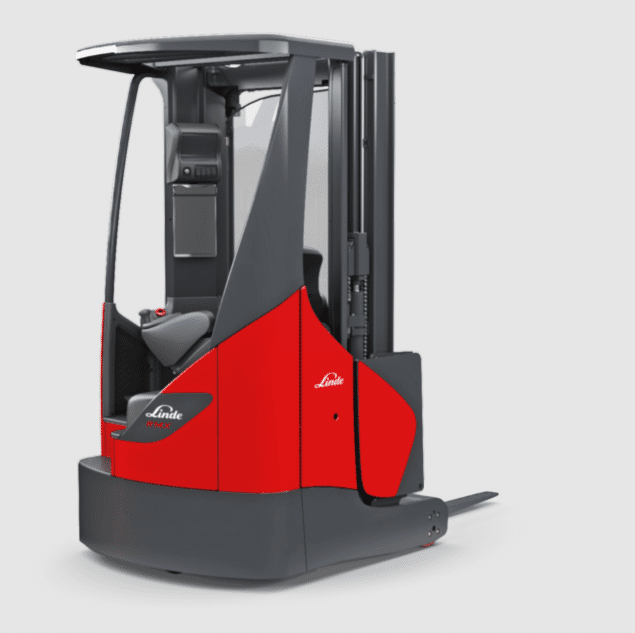

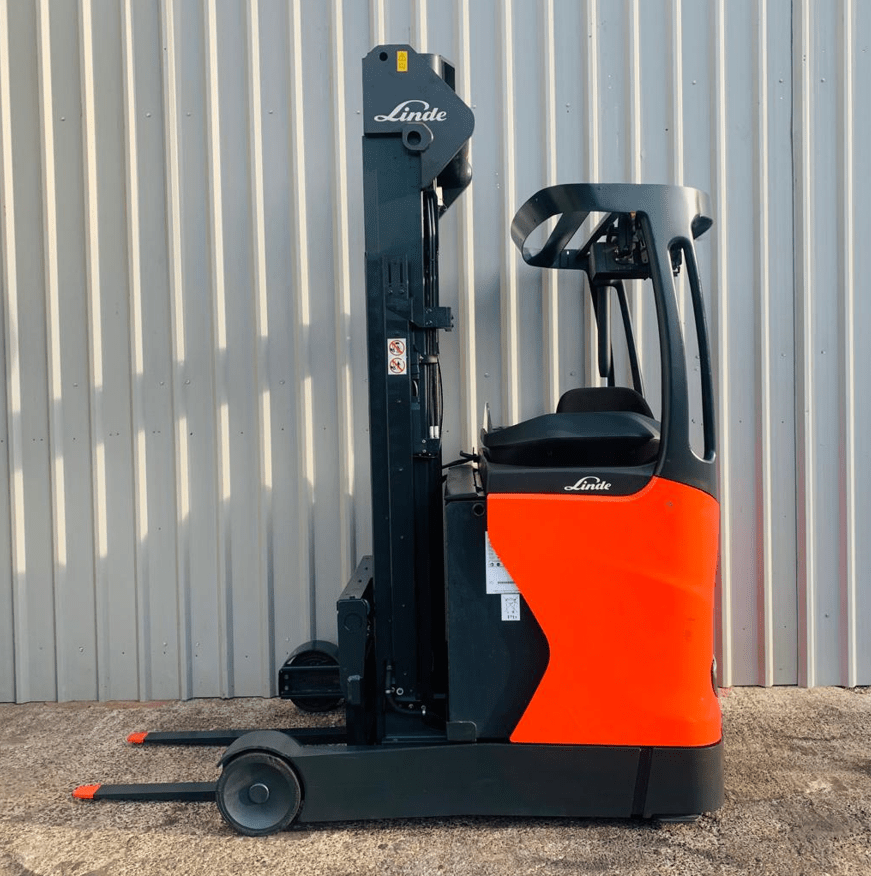

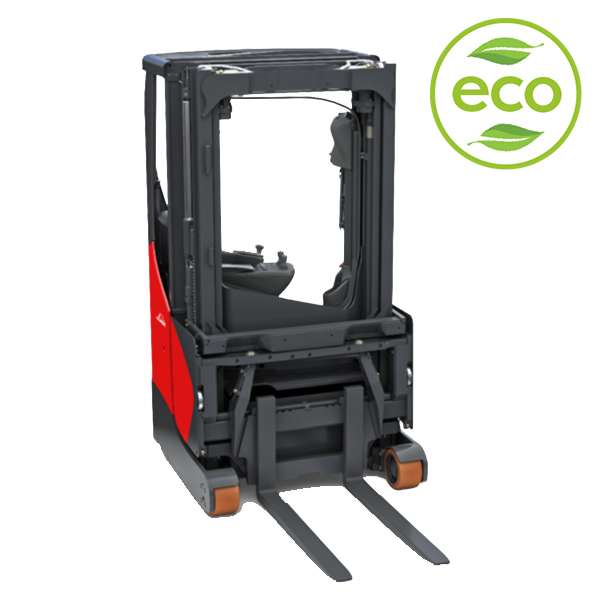

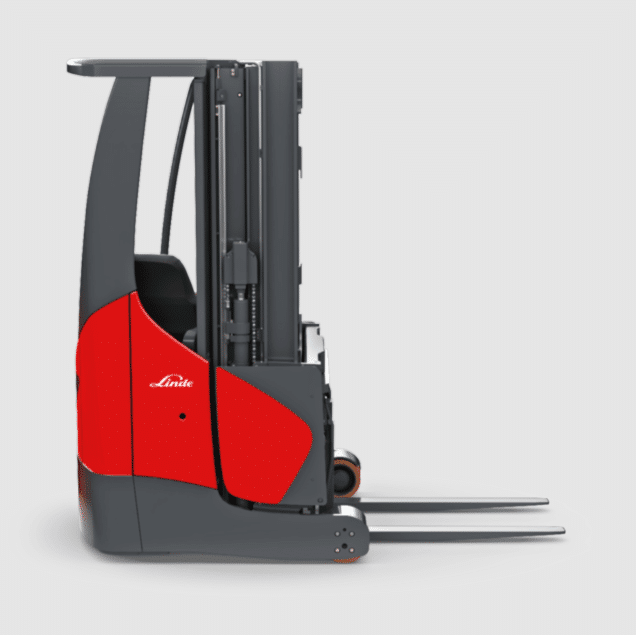

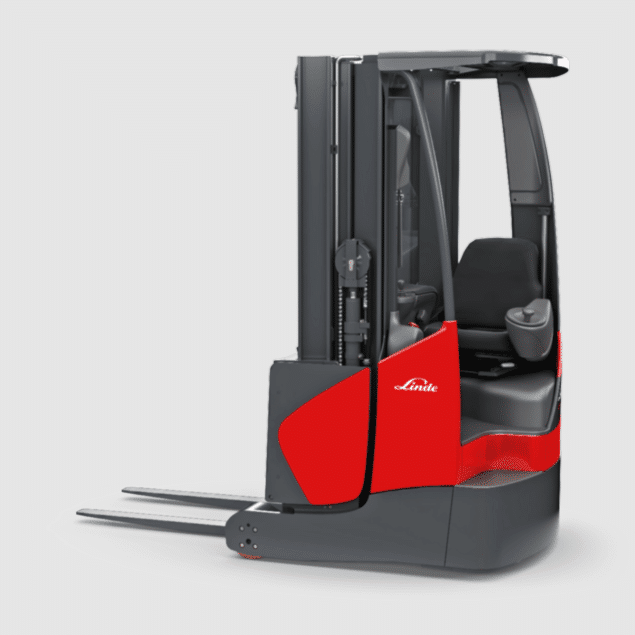

The 6.95m Narrow Forklift Truck - Linde R14X High has an exceptional design which increases performance, driving comfort and safety.

This Narrow Forklift Truck (FLT) is efficient handling loads of up to 1.4 tons and has a working height of over 6.95m in narrow rack aisles. Making it the ideal piece of kit high rack warehouses, its special design with short reach travel movements enables use in narrower aisles.

The Linde X-Range are safer and more comfortable and feature an extra wide mast.

The position of the battery being under the cabin means that the operator has double the amount of space and vision field compared to traditional reach trucks.

Product Features:

  • 1.4t load capacity
  • 6955mm load lift
  • Compact design
  • Short reach travel distances
  • Improved stability
  • High residual load capacity
  • Unique view through the mast
  • Side shifter as standard
  • Wide lift masts for all-round vision
  • Automatic parking brake
  • Linde Curve Assist
  • Four independent braking systems
  • Minimum 3-day hire period on this product

View the product specifications for the 6.95m Narrow Forklift Truck - Linde R14X High

Read about the Linde R14X  High Reach Truck features here

Place your Hire Request

£83.57/day (Exc VAT)
Price per day when hiring for a week or more
£351.00 + VAT
Calculating...
Find your nearest depot
Training

IPAF Course Booking

Need certified operators? Browse our accredited IPAF qualification course.

View Courses
Discount

Commercial Hire Solutions

Business & long term hire rates.

Long Term Equipment Hire

Save up to 30%
  • Suitable for Non-Account Holders
  • Discounted Day Rates
Enquire Now

Trade Credit Account

Payment Terms
  • Bespoke Price Agreement
  • Live Hires, Historical Data & Reports
  • Monthly Invoicing
  • Online Ordering & Off-hire Management
  • Dedicated Account Manager
Open a Credit Account / Register

Hire rates Ex VAT & Delivery

1 day
£351.00
£351.00 / day
Base Rate
2 days
£351.00
£175.50 / day
Save: 50%
3 days
£351.00
£117.00 / day
Save: 66%
4 days
£468.00
£117.00 / day
Save: 66%
Week
£585.00
£83.57 / day
Save: 76%

Transport Code: 6

*Exact transport costs will be calculated with depot

Large Access Transport Guideline

Up to 10 miles:
£85 Each way

11-20 miles:
£150 Each way

21-30 miles:
£170 Each way

Full Technical Specifications

Make / model

Linde R14X High

Aisle width for pallets 1000 × 1200 crossways

2662mm

Type of drive unit

Electronic / stepless

Battery voltage/rated capacity (5h)

48V / 690Ah / 750kWh

Drive motor rating S2 60 min

6.5kW

Service brake

Electric/hydraulic

Lifting speed, with/without load

0.41 / 0.7 m/s

Travel speed, with/without load

14 / 14 km/h

Tyres

Polyurethane

Turning radius

1335mm

Aisle width with pallet 800 x 1200 along forks

2756mm

Fork dimensions DIN ISO 2331

40mm x 80mm x 1150mm

Power unit

Battery

Overall width

1270mm

Overall length

2444mm

Height of overhead guard (cabin)

2355mm

Height of mast extended

7914mm

Height of mast lowered

2955mm

Lift

6955mm

Wheelbase

1130mm

Load centre distance

600mm / 500mm

Load capacity

1.4t

Service weight

3770kg
