Hire rates Ex VAT & Delivery
Transport Code: 6
*Exact transport costs will be calculated with depot
Large Access Transport Guideline
Up to 10 miles:
£85 Each way
11-20 miles:
£150 Each way
21-30 miles:
£170 Each way

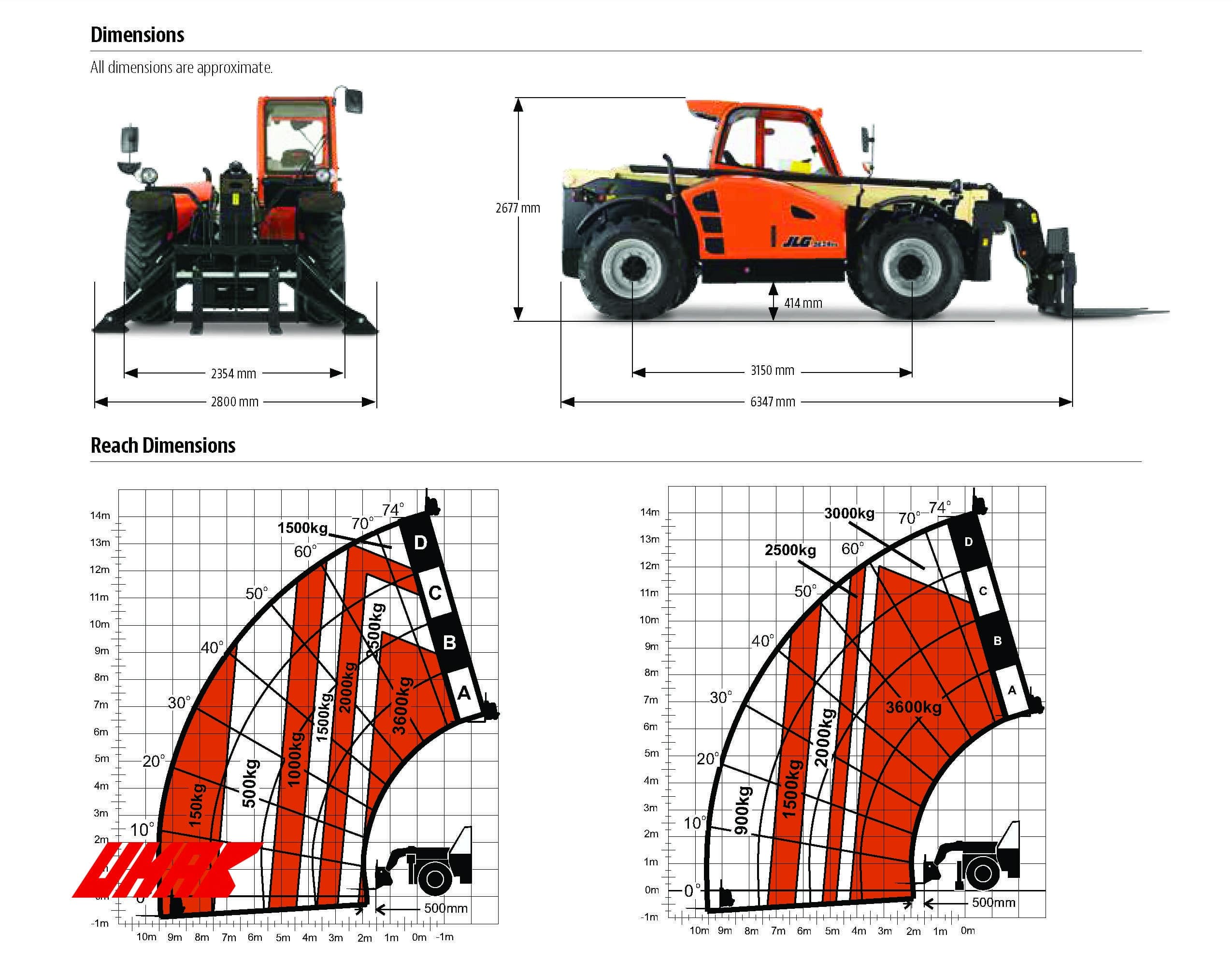

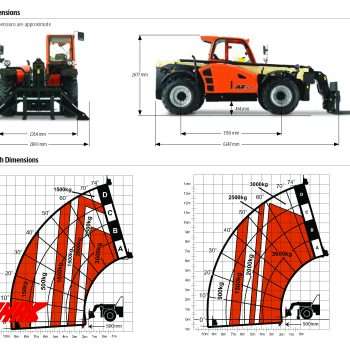

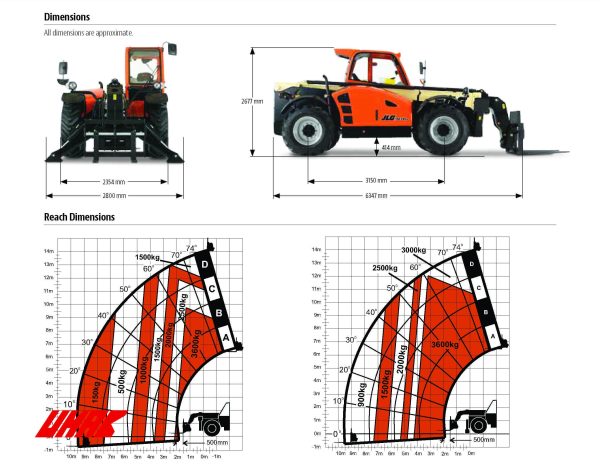

Full Technical Specifications
| Max. lift height | 14m |
|---|---|
| Drive | 4×4 |
| Max. travel speed | 25km/h (15.5mph) |
| Tires | Mitas 15.5 / 80-24ply |
| Steering | Two wheel / four wheel / crab steer with push button select facility |
| Transmission | 3 Speed forward and reverse |
| Max. torque | 420nM |
| Engine gross power | 74.4kW |
| Engine | Deutz TCD 3.6 L4 |
| Outside turning radius | 3.85m |
| Length (less forks) | 6.34m |
| Approximate operating weight | 9800kg |
| Max. forward reach | 9.23m |
| Capacity @ max. lift height | 3000kg |
| Rated capacity | 3600kg |
| Ground clearance | 414mm |
| Wheelbase | 3.15m |
| Height | 2.67m |
| Width | 2.35m |
| Fram tilt left / right | 10 degrees |
