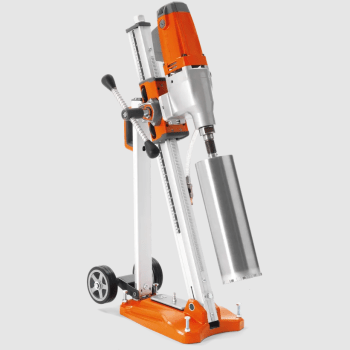

Large Diamond Core Drill Kit (c/w Drill,Rig,Pump) hire

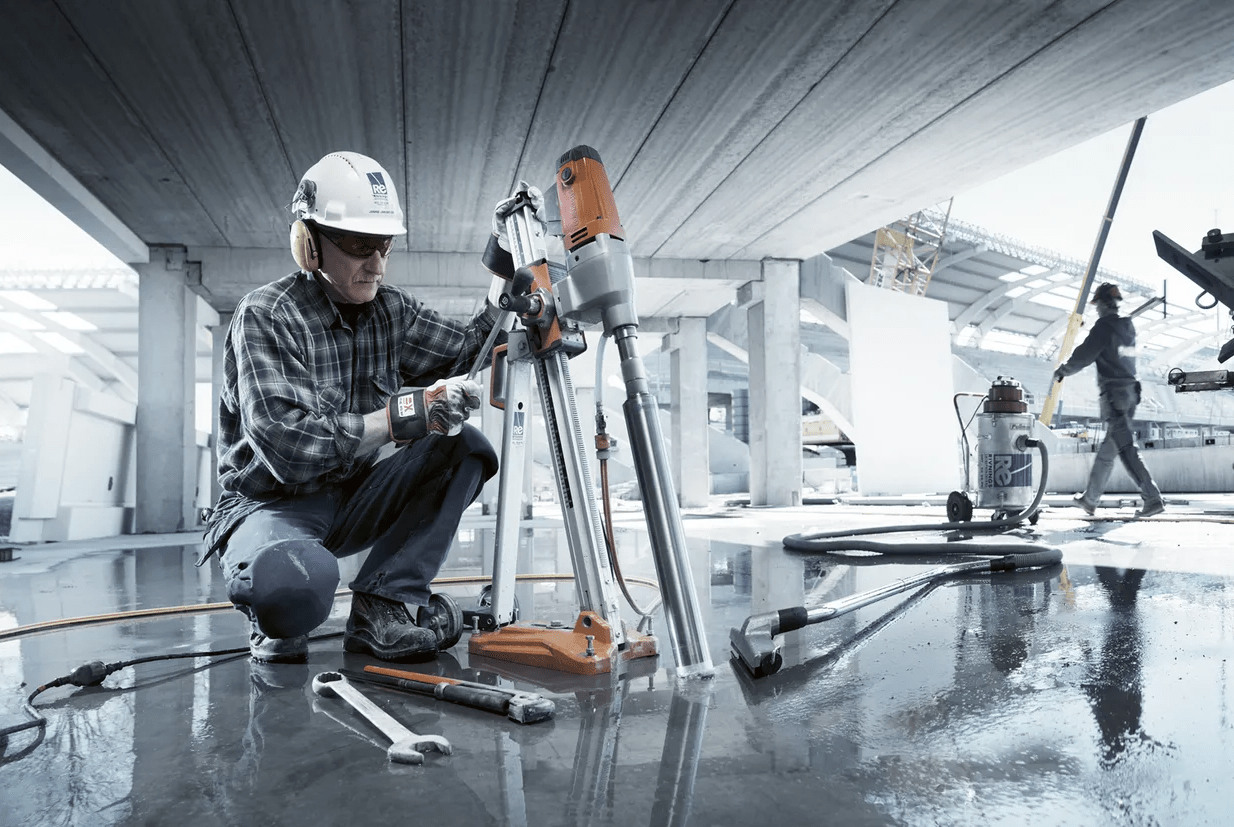

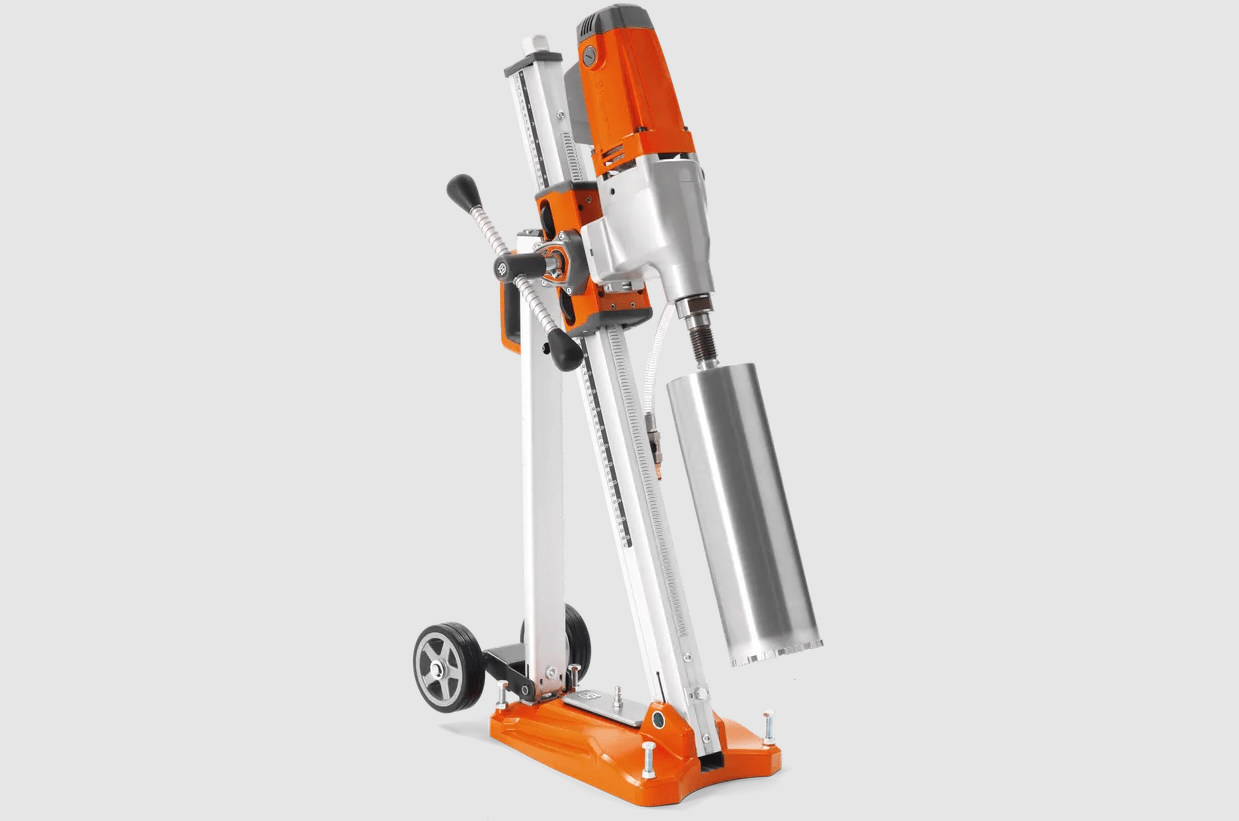

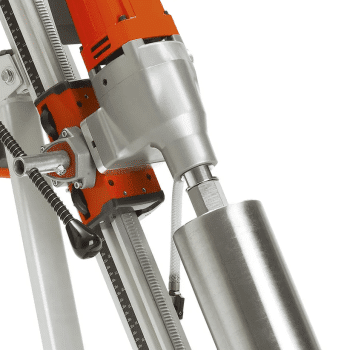

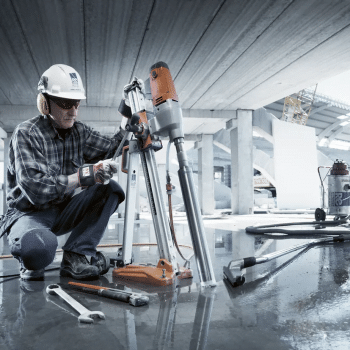

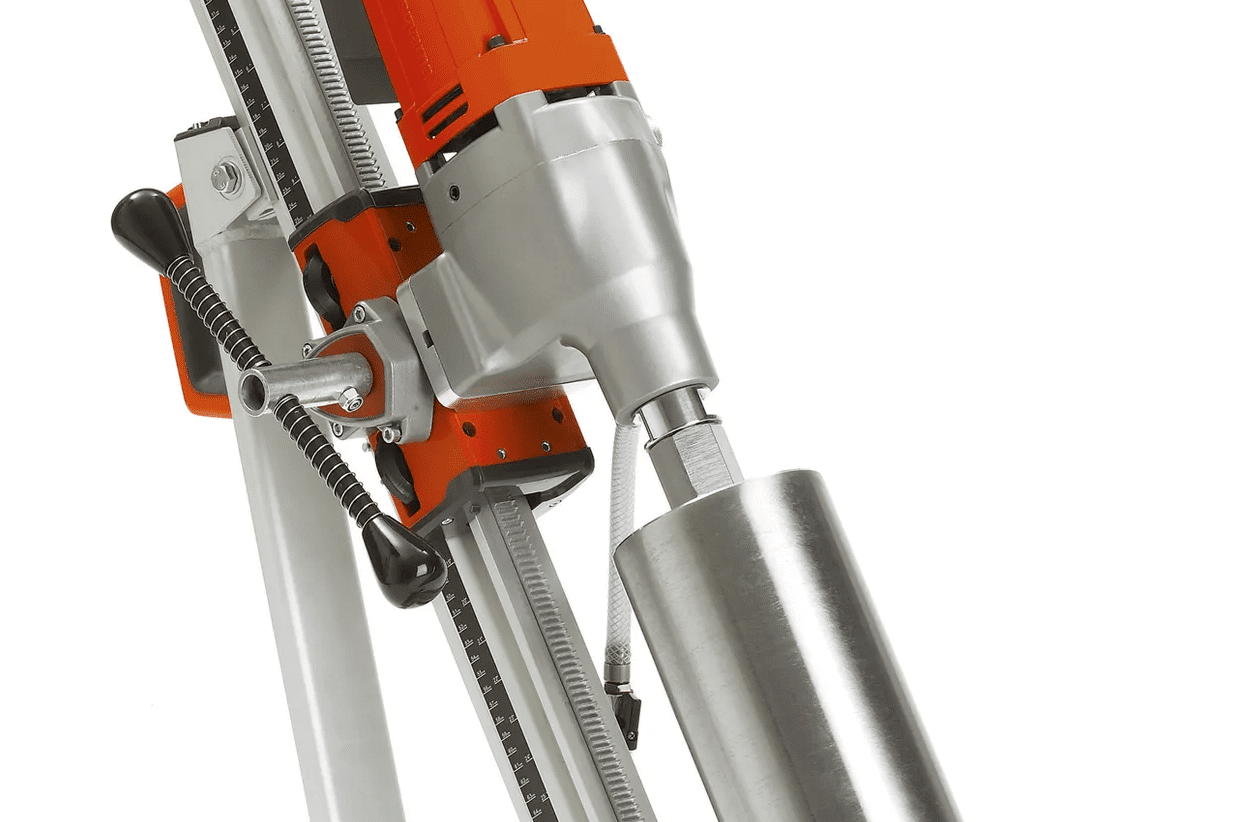

This electric drill motor and stand system is ideal for a variety of core drilling applications. This powerful system is perfect for medium core drilling in walls, floors and roofs up to 250mm diameter.

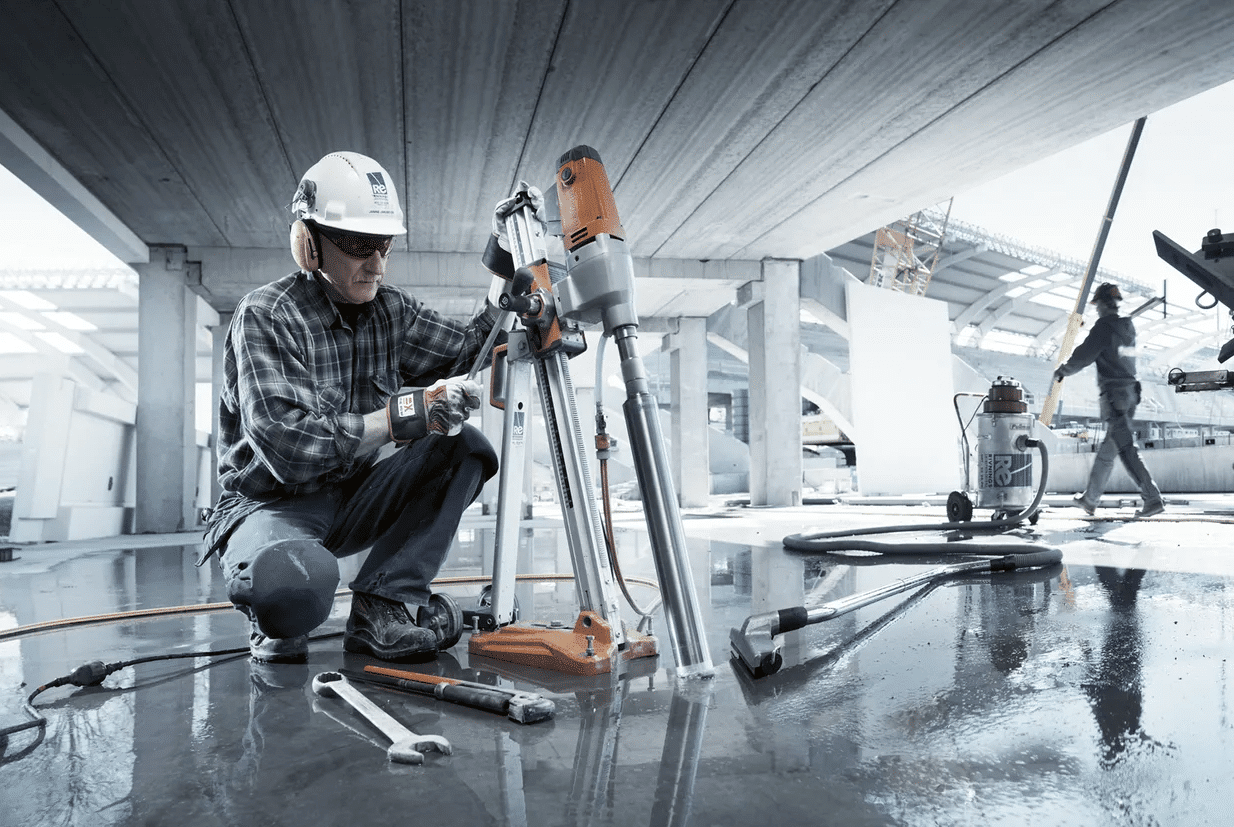

The stand is easy to tilt, the back support provides reliable and stable angle drilling, saving you setup time and body stress. This system can be used for drilling ventilation and plumbing channels, waste evacuation pipes as well as barrier and road signs.
Kit includes: Drill, Rig & Pump.
Product Features:
- Optimum cranking speed.
- User-friendly base plate.
- Overload protection.
- Easy transportation.

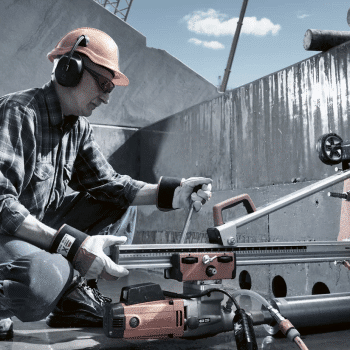

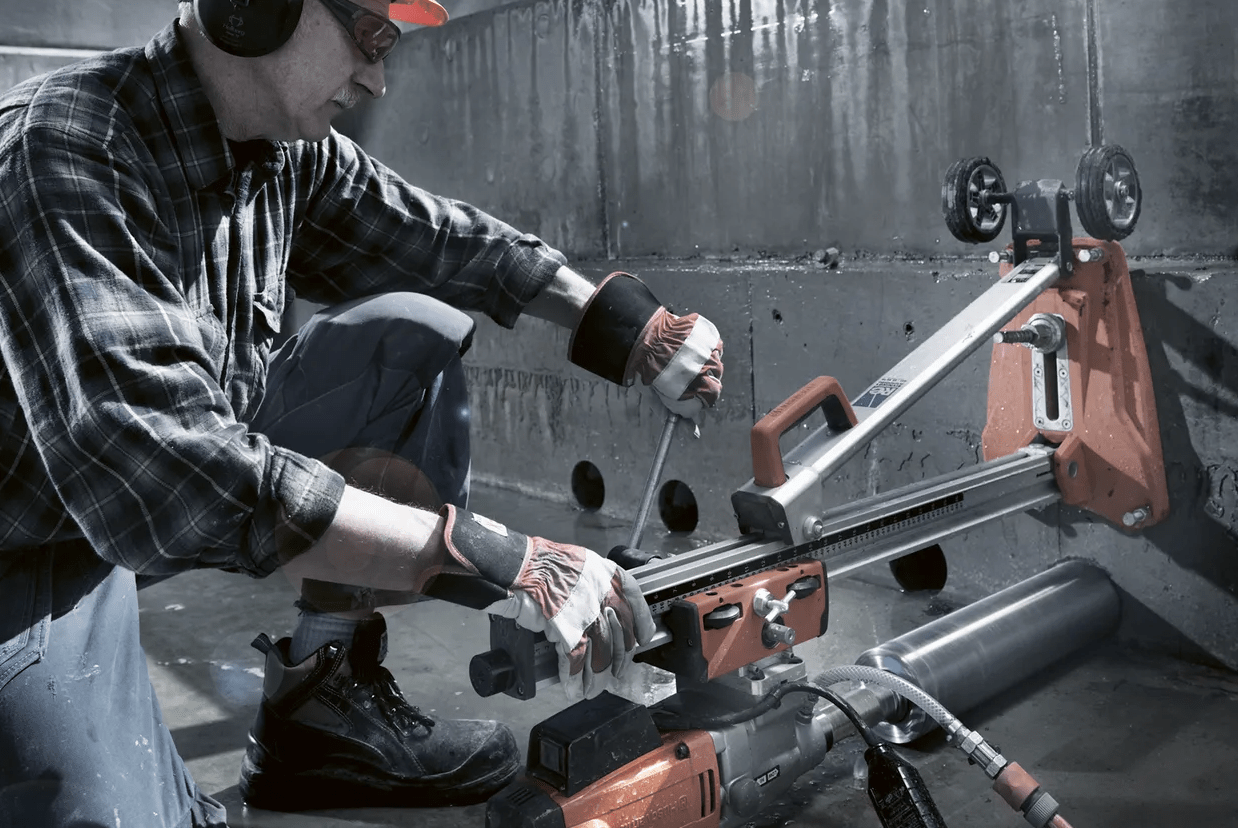

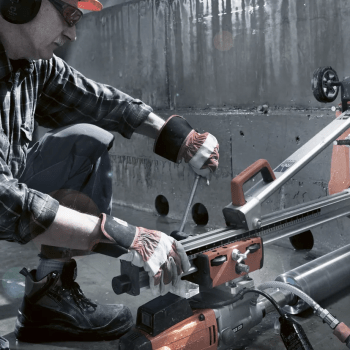

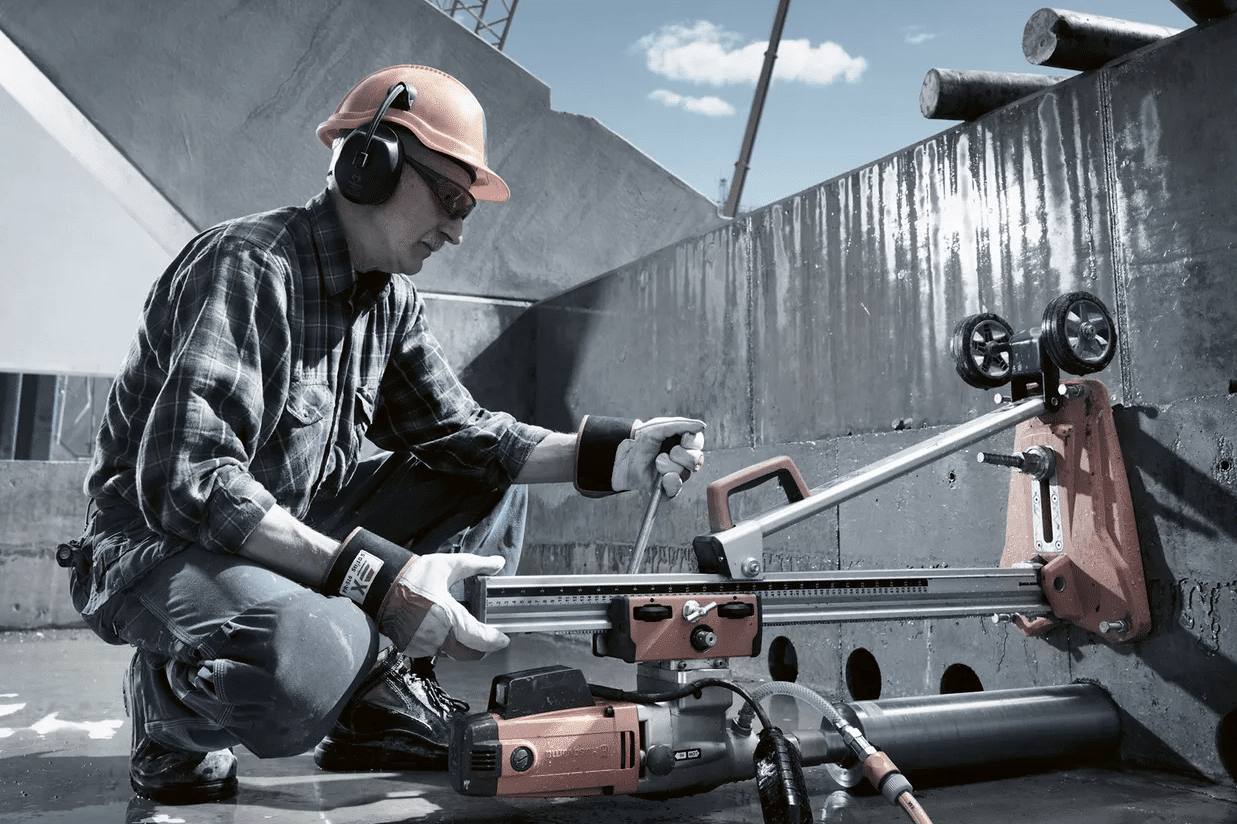

- Angle/Horizontal drilling.
- Channels, pipes and cables.
- Stitch drilling.
- Water evacuation.
View the product manual for the Husqvarna DMS240 Diamond Core Drill
Place your Hire Request
IPAF Course Booking
Need certified operators? Browse our accredited IPAF qualification course.
Commercial Hire Solutions
Business & long term hire rates.
Long Term Equipment Hire
- Suitable for Non-Account Holders
- Discounted Day Rates
Trade Credit Account
- Bespoke Price Agreement
- Live Hires, Historical Data & Reports
- Monthly Invoicing
- Online Ordering & Off-hire Management
- Dedicated Account Manager
Hire rates Ex VAT & Delivery
£234.00
£312.00
£390.00
£390.00
£390.00
Transport Code: 1
*Exact transport costs will be calculated with depot
Small Equipment Transport Guideline
Up to 10 miles:
£10 Each way
11-20 miles:
£16 Each way
21-30 miles:
£20 Each way
Full Technical Specifications
| Make / model | Husqvarna DMS240 |
|---|---|
| Water connector | G 1/4" |
| Sound pressure level at operators ear | 90dB(A) |
| Sound power level, guaranteed (LWA) | 107dB(A) |
| Product dimensions | L545mm x W266mm x H1052mm |
| Rated Current | 20 A |
| Column installation | Tiltable |
| Column's angling | 0-60 degrees |
| Water pressure max. | 8 bar |
| No of gearbox speeds | 2 |
| Specifications for the Husqvarna DMS240: | |
| Coolant | Wet |
| Drill bit diameter max. | 250mm |
| Power source | Corded |
| Phases | 1 ph |
| Voltage | 100-120 V |
| Frequency | 50HZ |
| Rated input power | 2.4kW |
| Weight (core drill only) | 20.4kg |
