1.6t Hybrid Mini Digger hire

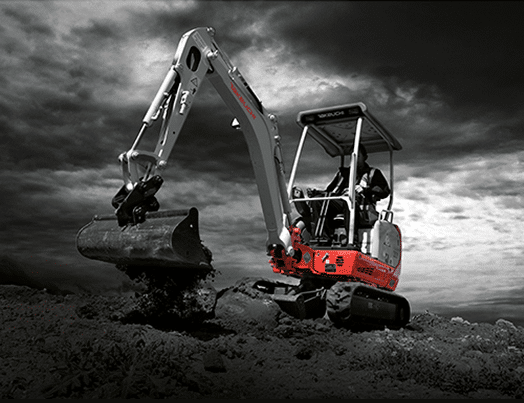

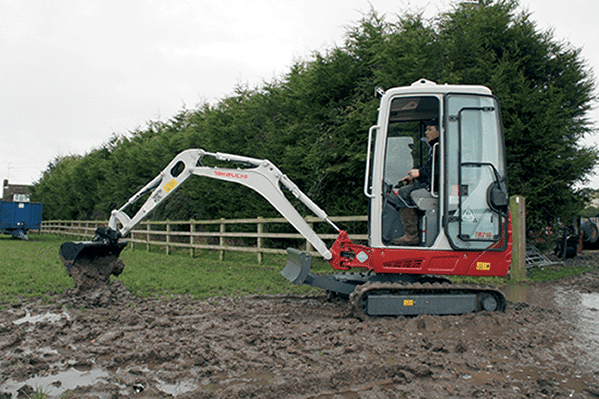

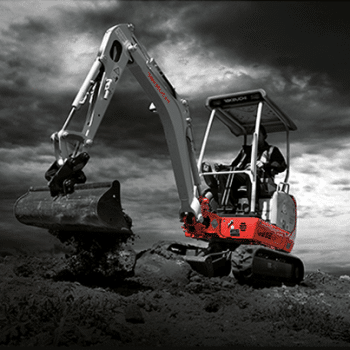

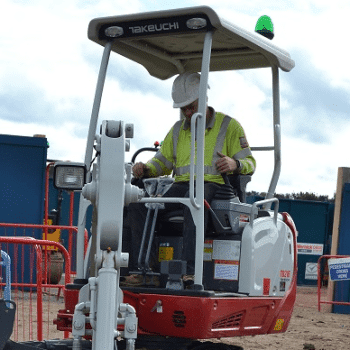

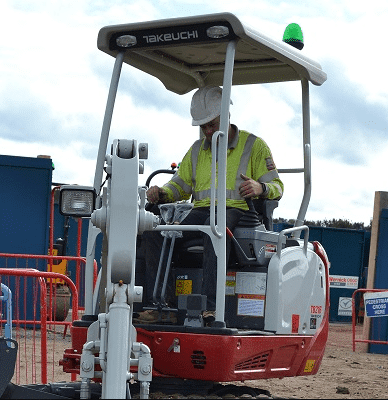

The 1.6t Hybrid Mini Digger by Takeuchi is one of the most popular mini excavators worldwide. This compact machine is packed with well-established features such as expanding tracks, smooth hydraulics, and strong breakout force. A firm favourite with tool hirers, utilities contractors, jobbing builders and groundworkers, it delivers exceptional performance in a compact frame. Designed for maximum dig depth and dump height, the 1.6t excavator offers excellent working ranges and power for its weight class.

The flexible high-voltage connection point, positioned at the rear of the machine, allows for 100% emission-free use with full hydraulic functionality and enhanced performance. The original diesel engine remains intact, meaning this Takeuchi mini digger can still be operated in traditional mode – simply switch to diesel when in travel mode. This dual-function design makes it an excellent choice for urban or enclosed sites where emissions need to be minimised without compromising power. That makes it a smart choice if you’re after efficient and environmentally conscious equipment from our range of hybrid excavators for hire.

1.6t Hybrid Mini Digger Product Features:

  • 1.60 Tonne
  • Robust for site, high utilisation - as machine works in all areas
  • Lower operating costs in electric mode
  • Switch on/off with ignition key
  • Compatible TKB52-S breaker
  • Proven expandable track frame
  • Stage V <19kW Engine
  • Enhanced visual display unit
  • Easy service access & maintenance

icon images

Click here to view the product information for the Takeuchi TB216 Compact Mini Excavator

View our full range of Mini Diggers and Attachments here

Place your Hire Request

POA + VAT
Calculating...
Find your nearest depot
Training

IPAF Course Booking

Need certified operators? Browse our accredited IPAF qualification course.

View Courses
Discount

Commercial Hire Solutions

Business & long term hire rates.

Long Term Equipment Hire

Save up to 30%
  • Suitable for Non-Account Holders
  • Discounted Day Rates
Enquire Now

Trade Credit Account

Payment Terms
  • Bespoke Price Agreement
  • Live Hires, Historical Data & Reports
  • Monthly Invoicing
  • Online Ordering & Off-hire Management
  • Dedicated Account Manager
Open a Credit Account / Register

Full Technical Specifications

Engine make & model

Yanmar 3TNV70

Ground clearance

205mm

Sound power level

93dB(A)

Cooling system

3.8l

Engine lubrication

2.8l

Fuel tank

22l

Hydraulic system capacity

24.5l

Hydraulic pump type

Variable x 2 + Gear x 2

Hydraulic main system pressure

210 bar

Min. front radius of machine

1480mm

Dozer blade (W x H)

980mm / 1300mm x 310mm

Rated output

11.5kW / 2400pm

With extended track

1300mm

Width cab/canopy

1055mm / 985mm

Overall length

3870mm

Operating weight (inclusive of bucket and fuel)

1800kg / 1680kg

Electrical system

12V 40 amp

Displacement

854cc

Cylinders

3

Maximum torque

52.7Nm

Vibration level

Arm <2.5m/sec2 / Body <0.5m/sec2
